• Thin-bezel auto-dimming rearview mirror with HomeLink® ³² universal transceiver
• Smart Key System with Push Button Start; remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
• Power tilt/slide panoramic roof with power sunshade
• Power vertical rear window with defogger and privacy glass
• Acoustic laminated windshield
• Power windows with one-touch auto up/down and jam protection
• Front and rear LED maplights
• Illuminated center console storage bin and glove box
• TRD Pro "TOYOTA" heritage instrument panel badge
• Soft-touch instrument panel, center console and door surfaces
• TRD red-striped leather-wrapped shift knob
• Multi-Terrain Monitor (MTM) with cameras
• Backup camera ¹⁵ with projected path
• Drive Mode Select (DMS) switch and dial
• Qi-compatible wireless smartphone charging ⁵¹
• Rear-seat air vents
• Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
• Front 12V ² auxiliary power outlet
• 120V/400W ¹ rear-seat AC power outlet
• Overhead console with rear window control, sunglasses storage and Safety Connect® ⁵⁶
• Electronic locking fuel door
• Front and rear assist grips

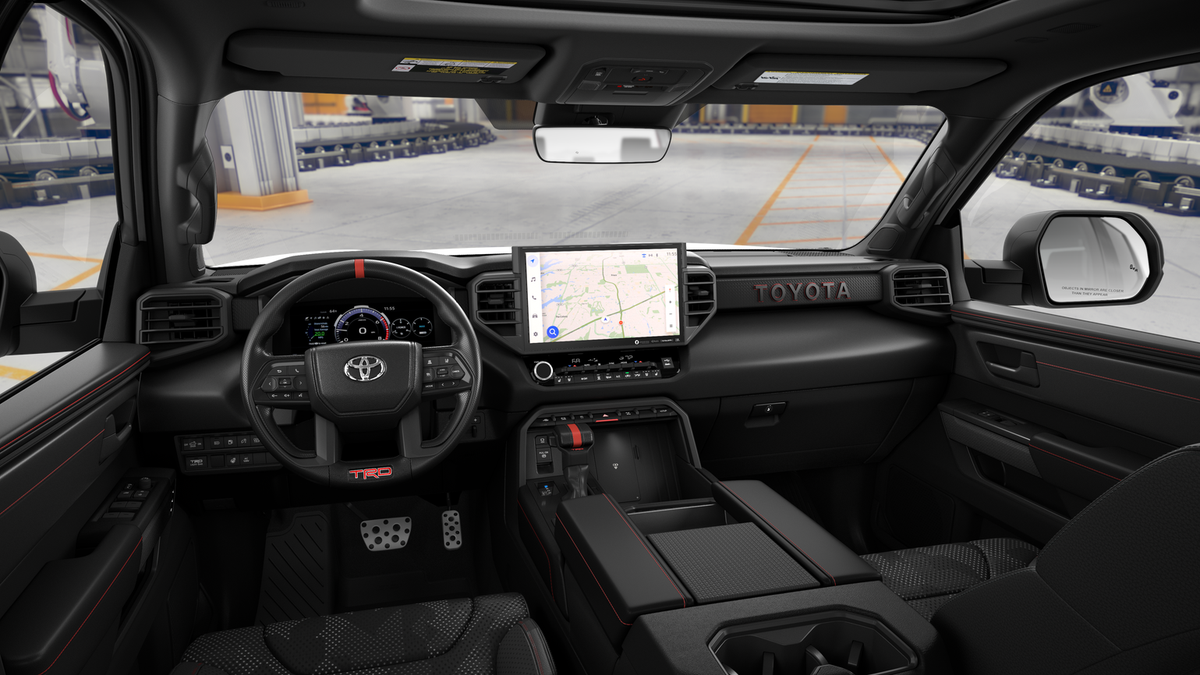

• 12.3-in. digital meter with selectable gauge display screens and fuel economy, Driver Assist, vehicle/trip information, and warning messages

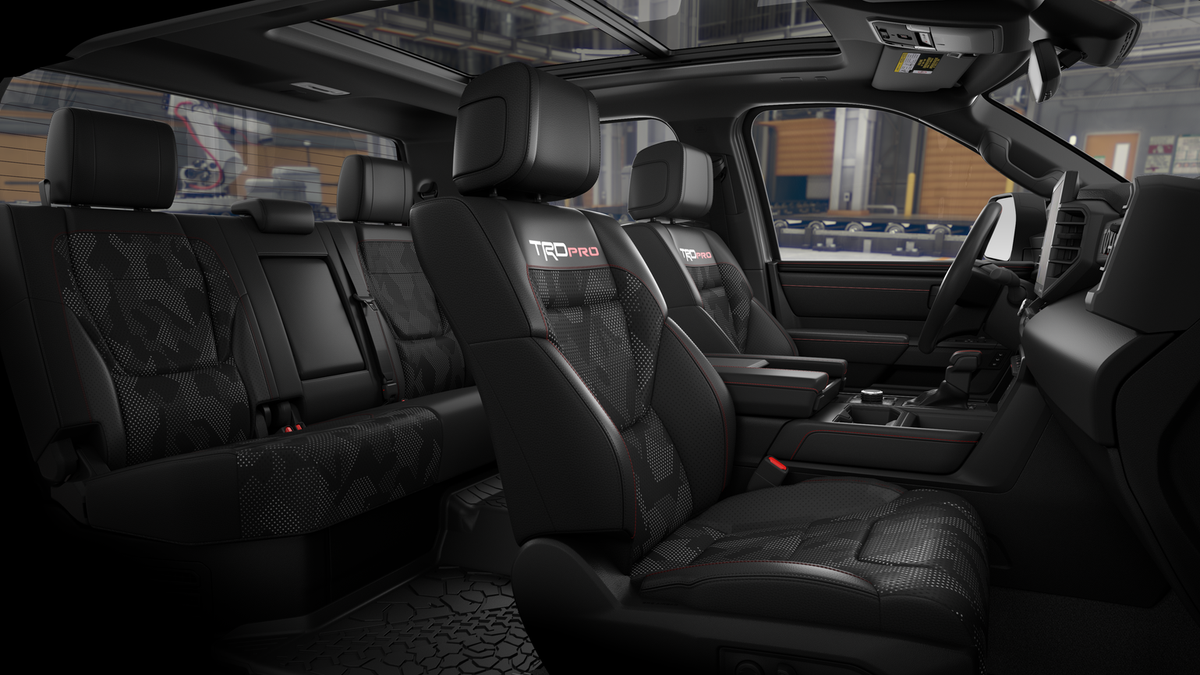

• TRD Pro SofTex®-trimmed seats with contrast stitching and technical-camo-pattern inserts; 8-way power-adjustable driver and front passenger seats with power-adjustable lumbar support
• Driver's-seat memory function
• Heated front seats
• Heated and ventilated front seats

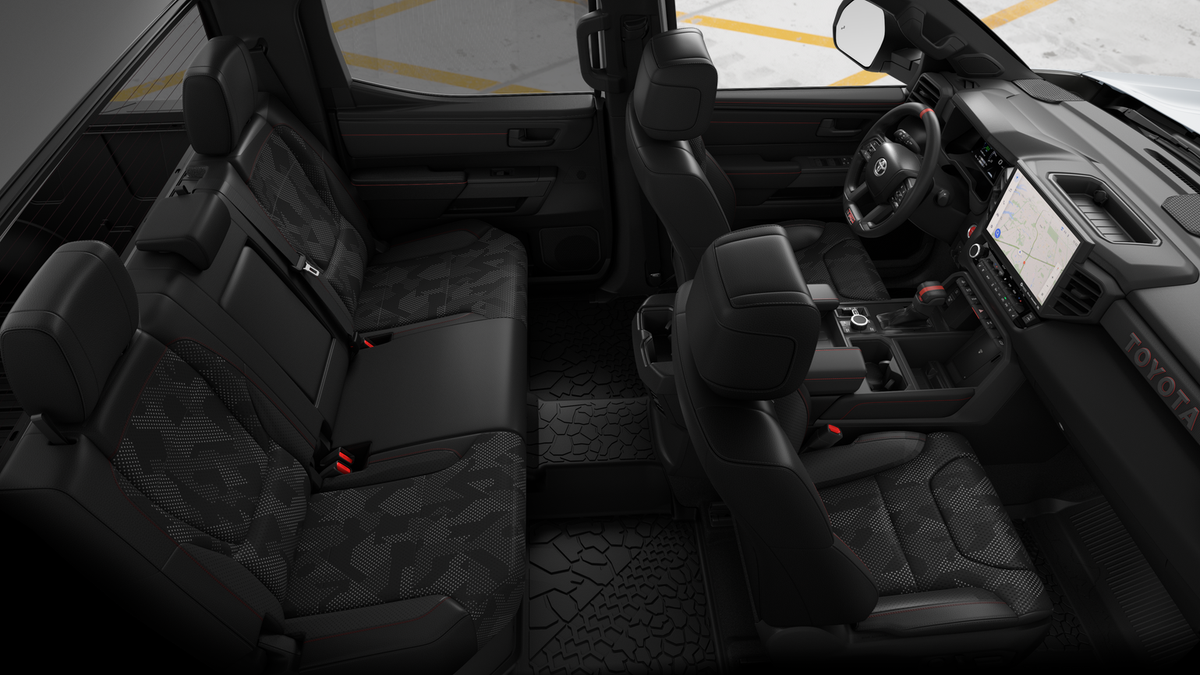

• 60/40 split, folding rear seat with center armrest and cup holders
• Dual zone automatic climate control with air filtration and individual temperature settings for driver and front passenger with S-Flow
• Aluminum sport pedals
• TRD Pro all-weather floor mats ²⁵
• TRD leather-wrapped manual tilt/telescopic steering wheel with TRD badge, red center stripe, and phone, audio, display/infotainment, and Driver Assist controls
• 12-speaker JBL® ³⁸ Premium Audio including subwoofer and amplifier

• Ignition System: Conventional 12V starter ²
• Fuel System: D-4ST direct-injection and port-injection fuel system
• Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
• Off-Road: Multi-Terrain Select (MTS), Crawl Control (CRAWL) ¹⁸ and Downhill Assist Control (DAC) ¹⁹
• Off-Road: Multi-Terrain Monitor (MTM) with selectable front, side and rear views
• Off-Road: TRD aluminum front skid plate
• Exhaust System: Stainless steel exhaust system
• Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector ⁶⁵
• Towing: Integrated Trailer Brake Controller (ITBC) ³⁷with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls ⁶⁵
• Towing: Trailer-Sway Control (TSC) ⁶⁹
• HV Electric Motor: Parallel hybrid system with permanent magnet synchronous motor/generator
• HV Electric Motor: Electric motor power: 48 hp (36 kW)
• HV Electric Motor: Electric motor torque: 184 lb.-ft. (250 N•m)
• HV Battery: 288V sealed Nickel-Metal Hydride (Ni-MH) battery ³⁴ with 1.87 kWh capacity
• Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low ranges) and Automatic Limited-Slip Differential (Auto LSD) ⁸
• Drivetrain: Electronically controlled locking rear differential
• Drive Modes: Eco, Normal and Sport driving modes
• Drive Modes: TOW/HAUL driving modes ⁶⁵
• Body/Frame: Fully boxed high-strength steel ladder frame
• Body/Frame: Hydraulic cab mounts
• Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
• Body/Frame: Active grille shutters
• Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
• Suspension: TRD Pro off-road suspension with 1.1-in. front lift, 2.5-in. FOX® ²⁷ Internal Bypass coil-overs and rear remote-reservoir shocks, and TRD Pro front stabilizer bar
• Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
• Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
• Brakes: Electronically Controlled Braking (ECB) system with integrated regenerative braking
• Brakes: Electric Parking Brake (EPB) ²²

• Toyota Safety Sense™ 2.5 (TSS 2.5) ⁷⁰ Pre-Collision System with Pedestrian Detection (PCS w/PD), ⁵⁰ Full-Speed Range Dynamic Radar Cruise Control (DRCC), ²⁸ Lane Departure Alert with Steering Assist (LDA w/SA), ³⁹ Lane Tracing Assist (LTA), ⁴⁰ Automatic High Beams (AHB), ⁷ Road Sign Assist (RSA) ⁵⁵
• 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
• Blind Spot Monitor (BSM) ¹⁴ with Rear Cross-Traffic Alert (RCTA) ⁵² and Trailer Merge Warning
• Front and Rear Parking Assist with Automatic Braking ⁴⁶
• Eight total airbags, including driver and passenger side, knee and curtain airbags ³
• LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
• Child-protector rear door locks and power window lockout control
• Star Safety System™ — includes Vehicle Stability Control (VSC), ⁷⁵ Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) ¹³ and Smart Stop Technology® (SST) ⁵⁹
• Drive-Start Control (DSC)
• Hill Start Assist Control (HAC) ³⁰
• Tire Pressure Monitor System (TPMS) ⁶⁸
• Driver and front passenger active headrests ³¹

Door Edge Guards: Stainless Steel

Help prevent door edge dings and chipped paint with this protective finishing touch.
• Thermoplastic-coated stainless steel is precisely matched to the exterior finish

50 State Emissions

50 State Emissions

Spray-On Bedliner

Get the spray-on bedliner that’s as tough and durable as your Tundra. Protect your bed from damage with this permanently bonded fixture.
• New Toyota-exclusive softer material to keep items from sliding in the bed
• Toyota quality standards assure uniform thickness and a consistent texture
• Textured surface is designed to prevent cargo from sliding
• No lost cargo space minimal added weight
• Features a Tundra logo
• Proprietary application method helps create a straight and crisp edge
• Fully warranted; repairs completed quickly and easily at a Toyota dealership

Wave Maker Paint

Wave Maker Paint

Tow Tech Package With Wireless Trailer Camera System

Tow Tech Package

• Exterior antenna and wireless trailer camera ⁷⁹

TRD Pro Package

TRD Pro Package

Integrated Dashcam

Designed to reliably capture video image sound and location data while you operate your vehicle. Will begin recording upon ignition to capture the drive or on impact when moving or parked.
• Playback or video download is available via the Smartphone App or PC Tool
• Includes a 16GB Industrial Grade MicroSD memory card

Black Front Bumper Insert

Tundra front bumper insert is engineered to fit into the bumper to give your Tundra a custom look.

• Designed to fit permanently into existing bumper


• Easy to install


• Available in black or chrome

TRD Air Filter

For optimal engine protection and performance the TRD air filter offers superb filtration and enhanced airflow.
• Four-ply filter element features durable epoxy-coated mesh enclosure and elastomeric seal to help optimize a precise leak-free fit
• Washable and reusable-regular cleaning and recoiling ensures free airflow and top performance

Paint Protection Film: Hood, Fenders, Door Cups & Mirror Backs

Helps protect the paint finish from chips and scratches.
• Kit includes paint protection film for hood fenders mirror backs and door cups
• Designed for specific sections of the vehicle most prone to chipping

TRD Pro Bed Lettering: Matte Black

TRD Pro lettering inserts emphasize the Tundra stamp in the tailgate and are an easy way to customize the look of your truck. Individual letters strongly adhere into the stamped tailgate logo.
•Attached with strong adhesive backing
•Includes matte black lettering

Hard Tri-Fold Tonneau Cover

Featuring a sleek trifold design the hard tonneau cover is easy to install and remove for storage. Use it to deter theft of your gear and other valuables as well as protect them from inclement weather.
• Self-latching system allows for easy-cover operation and removal
• Advanced seal-and-channel system has drain hoses at the cab-end helping to keep water out of the bed
• Innovative mounting system allowing for full access to bed rails
•Uses Deck Rail System for installation and is weather resistant

Quick Charging Cable Package

Features automotive grade quality USB charging cables a convenient way to have your smart devices charged while on the go.
Includes:
• 1-Apple Lightning to USB-A Cable - 3’
• 1-Apple Lightning to USB-C Cable - 3’
• 1-USB-C to USB-A Cable - 3’
• 1-USB-C to USB-C Cable - 3’

Emergency Assistance Kit

This multi-functional kit contains tools you may need for unexpected emergencies.The compact zipper bag features outer storage pockets and reflective emergency indicators on the surface. Kit includes:
•Versatile stainless steel pocket tool with pliers wire cutters and two screwdrivers
•Heat-reflective emergency blanket flashlight work gloves automotive-grade hose tape tire gauge bungee cord shop towel and tether strap
•Booster/jumper cables with multilingual instructions

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 20
• Traction Battery
• Gross Traction Battery Capacity (kWh): 1.9
• Weight Information
• Base Curb Weight (lbs): 6015
• Gross Vehicle Weight Rating Cap (lbs): 7615
• Gross Combined Wt Rating (lbs): 17600
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11175
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1118
• Maximum Trailering Capacity (lbs): 11175
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Rear: 3.31
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Size: P285/65HR18
• Rear Tire Size: P285/65HR18
• Spare Tire Size: Full-Size
• Wheels
• Front Wheel Size (in): 18 X 8
• Rear Wheel Size (in): 18 X 8
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Forged Aluminum
• Rear Wheel Material: Forged Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 49.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32.2
• Exterior Dimensions
• Wheelbase (in): 145.7
• Length, Overall (in): 233.6
• Width, Max w/o mirrors (in): 80.2
• Height, Overall (in): 78
• Ground Clearance, Front (in): 9
• Ground Clearance, Rear (in): 9
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 65.6
• Cargo Box Width @ Top, Rear (in): 58.7
• Cargo Box Width @ Floor (in): 58.7
• Cargo Box Width @ Wheelhousings (in): 48.7
• Cargo Box (Area) Height (in): 20.9
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.3
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 65
• Front Hip Room (in): 62.6
• Second Head Room (in): 36.9
• Second Leg Room (in): 41.6
• Second Shoulder Room (in): 62.4
• Second Hip Room (in): 60.5
• Summary
• Vehicle Name: Toyota Tundra 4WD
• Body Style: CrewMax
• Body Code: T
• Emissions
• EPA Greenhouse Gas Score: 4.0
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
